Pallet Rack System WH002
Solution introduction
Heavy duty storage rack system for warehouses, distribution centers and industrial facilities. Load capacity 1T–4.5T per layer. Lengths and heights can be customized.
Heavy duty storage rack system for warehouses, distribution centers and industrial facilities. Load capacity 1T–4.5T per layer. Lengths and heights can be customized.
Product Description:

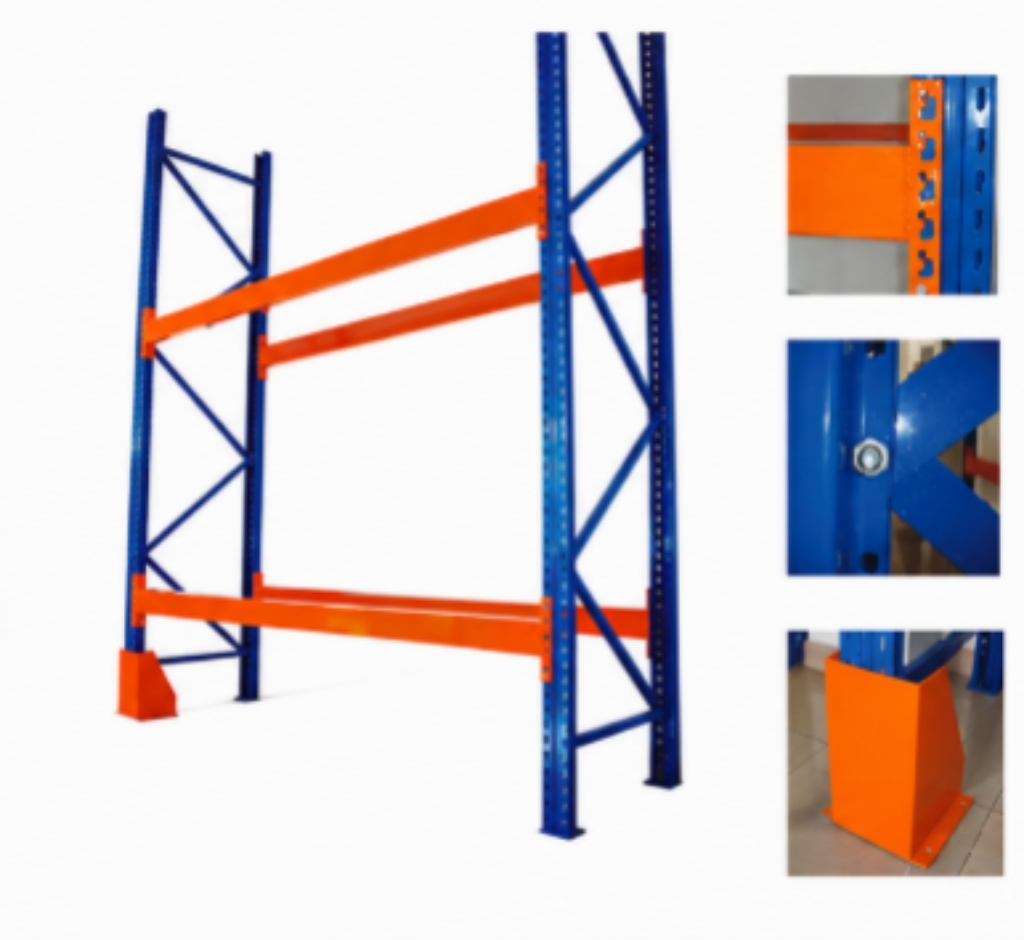

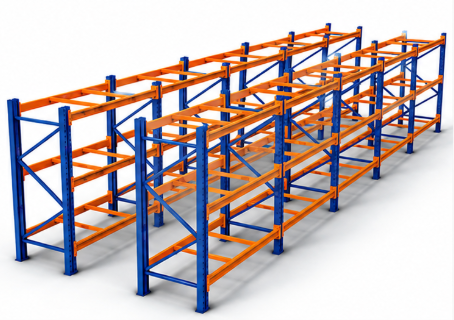

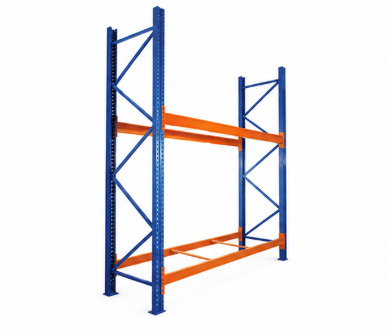

This heavy duty storage rack is a pallet rack system engineered for warehouses, distribution centers and industrial facilities that need to store heavy palletized goods, cartons and bulk inventory. The reinforced steel frame features blue uprights and orange beams that lock together with a boltless connection, allowing fast installation and easy beam height adjustment without tools. Each layer supports 1T to 4.5T, making it suitable for pallets loaded with packaged goods, machinery parts and raw materials. The modular design fits warehouse ceiling heights from 2000 mm to 6500 mm, and multiple bays can be connected side by side to create long storage rows. A wide range of lengths from 2300 mm to 3900 mm and widths from 900 mm to 1200 mm are available to match your storage layout. The rack can also be equipped with accessories such as back panels, decking and pallet supports for added stability. Custom sizes and colors are available to suit your facility.
Specification：
Item Code | Length | Width | Height | Load Capacity |
WH002 | 2300 mm | 900 mm | 2000–6500 mm | 1T–4.5T |
2500 mm | 1000 mm | |||
2700 mm | 1100 mm | |||
3000 mm | 1200 mm | |||
3300 mm | ||||
3600 mm | ||||
3900 mm |
Key Features:
· Heavy duty reinforced steel frame with blue uprights and orange beams.
· 1T–4.5T load capacity per layer.
· Adjustable beam heights from 2000 mm to 6500 mm.
· Boltless assembly for fast installation.
· Wide range of lengths and widths to fit any warehouse.
